Natural stone — whether marble, granite, limestone, or travertine — has been prized for centuries for its beauty, durability, and timeless appeal. But beneath that polished surface lies a hidden vulnerability: natural stone is inherently fragile. Cracks, fissures, and veins that are invisible to the naked eye can cause slabs to break during cutting, transportation, or installation. This is where fiberglass mesh for stone backing becomes indispensable.
In this article, we explore why stone needs fiberglass mesh, how it works, and what to look for when choosing the right mesh for your stone products.
Many people assume that because stone is hard, it is also tough. In reality, hardness and toughness are very different properties. Natural stone is formed over millions of years through geological processes that create internal stress patterns, micro-fissures, and natural veins. These structural weaknesses mean that:
Marble and limestone are particularly prone to cracking along veining lines, especially when the veins contain softer minerals.
Granite, while harder, can still split along natural grain boundaries or hidden micro-cracks.
Travertine and slate have layered structures that make them susceptible to delamination and breakage.
Without reinforcement, a single hairline crack can propagate through an entire slab — turning a valuable piece of stone into an unsalvageable fragment.
Did you know? Up to 30% of natural stone slabs can develop cracks during processing if no reinforcement is applied. Fiberglass backing mesh dramatically reduces this loss rate.

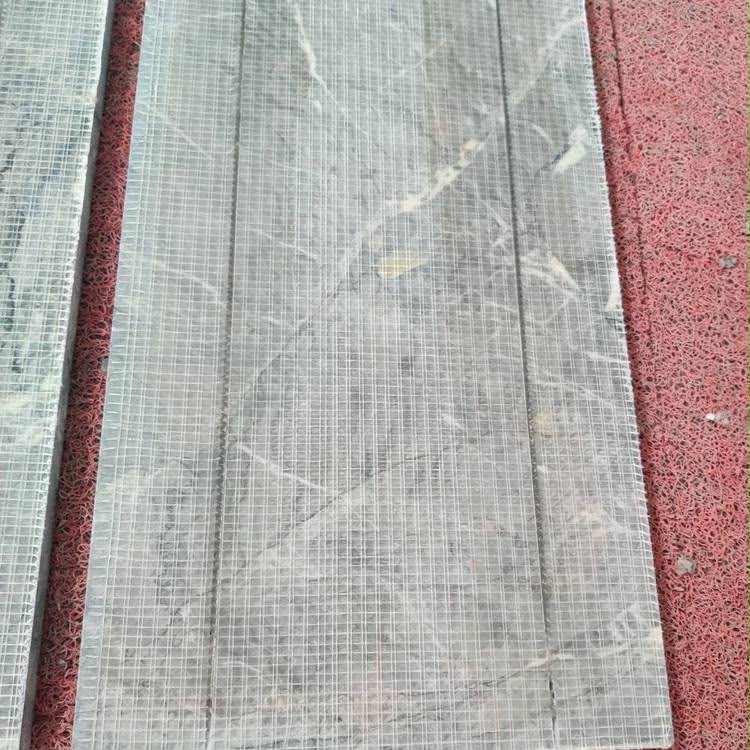

Fiberglass mesh works on a simple but powerful principle: distributed reinforcement. When a woven fiberglass mesh is bonded to the back (the unpolished side) of a stone slab using epoxy or polyester adhesive, it creates a continuous structural layer that holds the stone together.
Here's how the process works:
Adhesion: The adhesive penetrates through the mesh openings and bonds directly to the stone surface, creating a strong mechanical and chemical bond.
Load distribution: When stress is applied — whether from handling, cutting, or thermal expansion — the mesh distributes the force across a wider area rather than concentrating it at a single point.
Crack bridging: If a crack begins to form, the fiberglass strands bridge across the crack, preventing it from spreading and keeping the slab intact.
Shatter prevention: Even if the stone does break, the mesh holds the fragments in place, preventing dangerous shattering and allowing the slab to remain usable.
Benefit | Description |
|---|---|
Crack Prevention | Reinforces weak veins and fissures, preventing cracks from forming during processing and handling. |
Safe Transportation | Holds stone slabs together even if internal cracks develop, preventing catastrophic breakage during shipping. |
Easier Installation | Gives installers confidence when handling large, heavy slabs — reducing the risk of on-site breakage. |
Higher Yield | Allows processors to use slabs with natural veins or micro-fissures that would otherwise be discarded, increasing material yield. |
Moisture Resistance | Quality fiberglass mesh is treated with alkali-resistant coatings, making it suitable for both indoor and outdoor stone applications. |
Cost-Effective | A small investment in mesh saves thousands in broken stone, rejected shipments, and rework costs. |
Fiberglass mesh is used across the entire stone industry value chain:
Marble slab processing: Applied immediately after cutting to reinforce slabs before polishing.
Granite countertop fabrication: Used on slabs with natural fissures to prevent breakage during cutting and installation.
Stone composite panels: Bonded between thin stone veneers and aluminum honeycomb or ceramic backings for lightweight panel systems.
Travertine and limestone tiles: Provides structural integrity to naturally porous and layered materials.
Architectural stone cladding: Ensures large facade panels remain intact under wind loads and thermal cycling.
Stone restoration: Used to reinforce cracked or damaged stone elements during repair work.
Not all fiberglass mesh is created equal. When selecting mesh for stone backing applications, consider the following specifications:
Common grid sizes range from 5×5mm to 10×10mm. Smaller grids (5×5mm) provide more reinforcement for fragile stones like marble with heavy veining. Larger grids (10×10mm) are suitable for stronger stones like granite.
Stone backing mesh typically ranges from 60g/m² to 165g/m². Heavier mesh provides greater tensile strength but uses more adhesive. For most marble applications, 90–120g/m² is the standard choice.
Look for mesh with a tensile strength of at least 60–80 N/25mm in both warp and weft directions. This ensures the mesh can effectively bridge cracks and distribute stress.
For stone applications, alkali-resistant (AR) coated fiberglass mesh is recommended. The coating protects the glass fibers from degradation when used with cement-based adhesives or in alkaline environments.
White is the most common color for stone backing mesh, as it is less visible through translucent stones. For dark stones or specialized applications, colored mesh is also available.
As a direct fiberglass mesh manufacturer, we understand that stone processors demand consistency — every roll must meet the same specifications for weight, mesh size, and tensile strength. When you source from a specialized factory rather than a trading company, you benefit from:
Consistent quality control — every batch tested for weight, mesh count, and tensile strength.
Custom specifications — mesh size, weight, width, and roll length tailored to your production needs.
Competitive pricing — factory-direct pricing without middleman markups.
Reliable supply — direct production capacity ensures on-time delivery for large-volume orders.
Technical support — expert guidance on selecting the right mesh for your specific stone type and application.
Fiberglass mesh is not an optional accessory in the stone industry — it is a critical reinforcement material that protects stone slabs from cracking, reduces waste, and ensures safe handling from factory to final installation. Whether you process marble, granite, limestone, or composite stone panels, choosing the right fiberglass backing mesh is an investment that pays for itself through higher yields, fewer breakages, and greater customer satisfaction.
Looking for high-quality fiberglass mesh for stone backing? Contact us today for factory-direct pricing, custom specifications, and free samples.
