Window Screen Mesh: Fiberglass vs Aluminum vs Specialty Options

At a Glance

Standard Fiberglass Mesh Technical Characteristics and Performance Baseline

Standard fiberglass screen mesh is a lightweight, non-corrosive composite material manufactured from glass fiber yarn coated with protective vinyl or PVC latex, offering excellent dimensional stability and ease of installation.

Fiberglass window mesh serves as the industry standard baseline across residential and commercial building designs. Engineered from continuous filament glass fibers that are twisted into strands, woven into a stable grid structure, and subsequently coated with protective polymer resins, standard fiberglass exhibits exceptional tensile strength relative to its lightweight mass. Because silica glass is intrinsically immune to chemical oxidation, fiberglass mesh will not rust, pit, or corrode when exposed to extreme marine salt spray, high humidity, or acidic atmospheric pollutants. This chemical inertness makes fiberglass highly preferable in coastal environments where traditional metallic wire screens deteriorate rapidly due to galvanic and atmospheric corrosion.

From a mechanical perspective, the flexible nature of woven fiberglass prevents permanent creasing or denting under localized physical contact. When subject to mild impacts, such as wind-blown debris or incidental physical pressure, fiberglass elastic memory allows the mesh filaments to yield without permanent deformation, returning seamlessly to its initial flat orientation. Furthermore, vinyl-coated fiberglass mesh provides smooth weave uniformity, optimized optical clarity for unobstructed outdoor viewing, and effective airflow ventilation while maintaining strict insect barrier parameters. Modern manufacturing processes utilize precise heat-setting steps during latex curing to lock warp and weft yarns in place, eliminating weave displacement under wind shear load.

However, basic standard fiberglass mesh possesses distinct physical limitations when subjected to severe thermal exposure or extreme mechanical stress. Standard PVC-coated fiberglass exhibits thermal degradation when exposed to temperatures exceeding 80 degrees Celsius, leading to latex softening, tensile degradation, and ultimate filament fraying under sustained UV radiation over long multi-year operational cycles. Additionally, standard commercial window screening lacks the alkali resistance needed for direct embedment into cementitious renders or heavy plaster matrices, requiring specifiers to differentiate between basic fenestration mesh and engineered reinforcing meshes. Understanding these fundamental parameters allows engineers to designate standard fiberglass for traditional screening, while upgrading to modified alkali-resistant and fire-retardant variants for structural and plastering applications. To better understand the fundamental material science behind these materials, specifiers can explore What Is Fiberglass Mesh Benefits And Why It Is Better for in-depth engineering breakdowns.

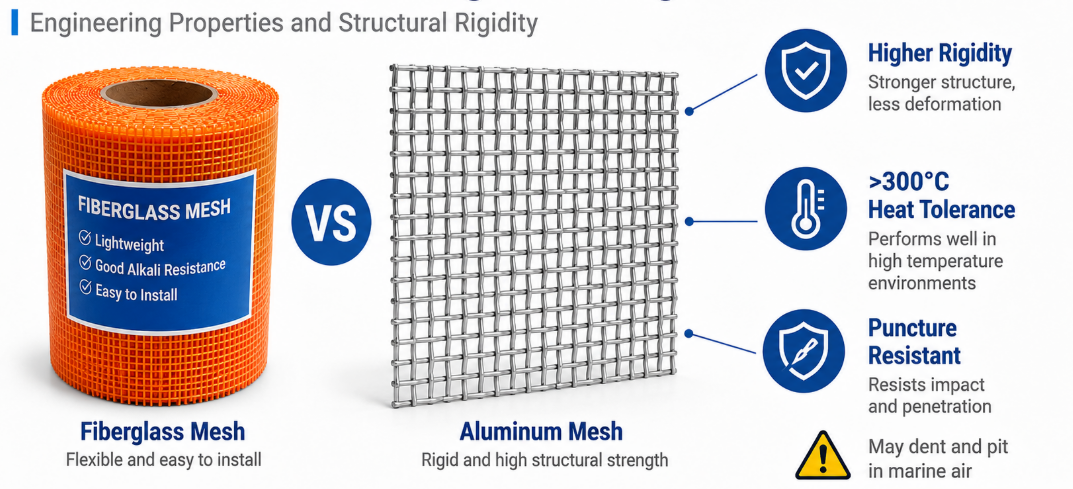

Aluminum Mesh Engineering Properties and Structural Rigidity

Aluminum wire screen mesh is a rigid, metallic screening product manufactured from high-strength aluminum alloy wires, providing superior sag resistance, puncture toughness, and elevated temperature endurance.

Aluminum mesh represents the primary metallic alternative to synthetic fiberglass screening in architectural fenestration and protective enclosure systems. Typically fabricated from aluminum-magnesium alloy wire (such as 5154 or 6061 grade wire stock), aluminum mesh undergoes precision weaving and subsequent protective chemical treatment, such as electrocoat painting or anodization, to mitigate raw metallic oxidation. The core engineering advantage of aluminum mesh lies in its structural rigidity and shear strength. Unlike soft synthetic fibers, aluminum wire retains rigid physical dimensions under high mechanical tension, making it ideal for large-span openings, architectural patio screens, and high-wind fenestration systems where structural screen sagging or billowing cannot be tolerated.

In terms of physical durability, aluminum screening offers robust resistance against sharp physical tears, pet clawing, and rodent gnawing, which can easily sever standard vinyl-coated fiberglass yarns. The metallic wire geometry resists localized shear stresses, preserving structural enclosure integrity under heavy mechanical impacts. Furthermore, aluminum exhibits a significantly higher thermal operating threshold than polymer-coated fabrics. Aluminum wire screening remains structurally unaffected at operating temperatures exceeding 250 degrees Celsius, rendering it suitable for regions vulnerable to wildfire embers or industrial settings where ambient heat exposure would melt vinyl coatings.

Despite its superior toughness, aluminum screen mesh presents specific chemical and operational challenges that must be evaluated during project specification. When raw or inadequately coated aluminum wire is exposed to severe coastal marine atmospheres containing high sodium chloride concentrations, it undergoes atmospheric pitting corrosion, forming a powdery white aluminum oxide residue that reduces visual transparency and compromises structural wire integrity. Additionally, aluminum wire is prone to permanent denting under heavy localized impacts; once creased or pushed out of plane, metallic wires suffer plastic deformation and cannot spring back to their original flat state. Care must also be taken to avoid contact with dissimilar metals or highly alkaline cement wet-mortar residues to prevent accelerated galvanic corrosion.

Specialty Options and Fire Retardant Fiberglass Mesh for EIFS

Fire-retardant Fiberglass Mesh 4.5oz is an engineered, heavy-duty reinforcing mesh manufactured from Alkali-Resistant (AR) glass fiber woven fabric coated with specialized flame-inhibiting latex, designed specifically for Exterior Insulation and Finish Systems (EIFS).

Beyond traditional window screening, advanced building envelope construction demands high-performance specialty meshes that serve as critical structural reinforcement within thin-coat render systems. Fire-retardant Fiberglass Mesh 4.5oz is a prime example of high-spec engineering tailored for specialized construction requirements. Formulated specifically for building projects with mandatory life-safety and non-combustible code compliance, this material is fabricated using high-purity alkali-resistant glass fibers woven into a stable grid matrix. The woven fabric is thoroughly impregnated with a proprietary fire-retardant latex coating. This chemical formulation prevents flame propagation along the building facade while forming a chemical shield that preserves the internal glass filaments against destructive hydroxide ions present in cement mortars.

The operational mechanics of Fire-retardant Fiberglass Mesh 4.5oz center on its dual protection function within EIFS wall assemblies. During normal environmental exposure, the mesh acts as structural soft steel embedded within the base coat render layer. With high ultimate tensile strength and low elongation under load, it absorbs and distributes mechanical shear stresses, thermal expansion forces, and structural wind movement across the entire wall surface, successfully preventing surface cracking and mechanical spalling. When subjected to severe fire conditions or direct flame exposure, the specialty fire-retardant latex coating actively suppresses combustion, suppressing smoke development and preventing the mesh from acting as a flame pathway across the exterior insulation board. Consequently, even after prolonged thermal exposure, the EIFS assembly maintains structural integrity without contributing fuel to the fire.

This specialty 4.5oz fire-retardant fiberglass mesh has gained widespread adoption across North American markets, including the USA, Canada, and Mexico, where municipal fire codes and IBC regulations dictate stringent non-combustibility criteria for mid-rise and high-rise commercial structures. European clients and regional contractors also prioritize this configuration due to its exceptional hand-feel softness, high flexibility during corner wrapping, and superior tensile endurance under extreme cyclic thermal loading. By serving as an elastic shear buffer, the mesh effectively isolates exterior insulation layers from dynamic building movements, significantly extending the service life of exterior wall systems.

Maintenance and Quality Control Protocol: When installing specialty alkali-resistant and fire-retardant fiberglass meshes within EIFS or rendering layers, store uninstalled rolls horizontally in a dry, UV-protected warehouse environment at temperatures between 10 and 30 degrees Celsius. Avoid tight folding or crushing roll edges prior to embedding into wet base-coat mortar, as mechanical creasing damages inner filament strands and reduces regional tensile performance by up to 25 percent.

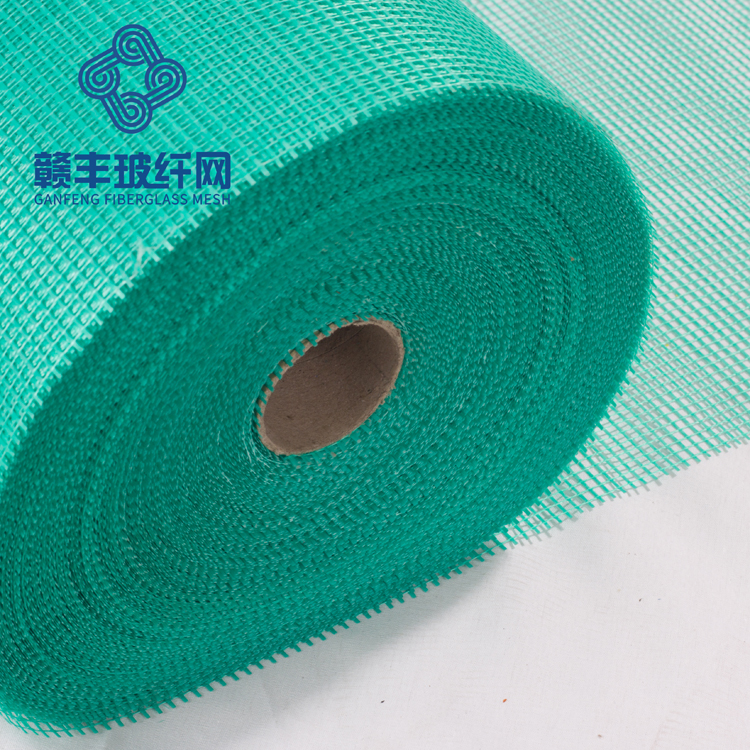

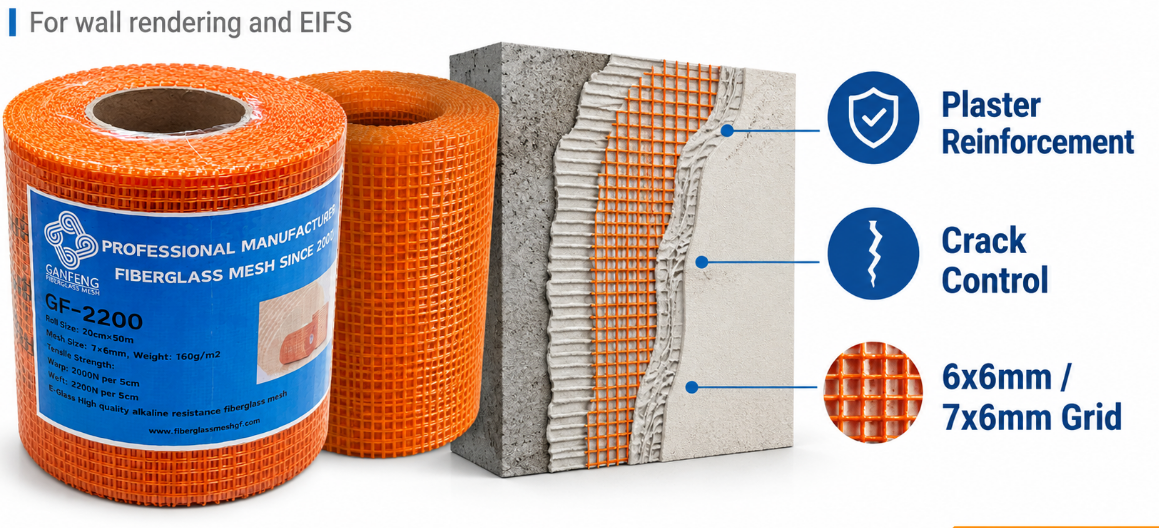

Color Fiberglass Mesh Applications in Plastering and Construction

Color Fiberglass Mesh is an engineered synthetic reinforcement grid treated with customized pigment-infused alkali-resistant coatings, designed to optimize job-site layer identification, enhance mortar mechanical keying, and eliminate structural cracking in plaster systems.

The strategic deployment of high-visibility Color Fiberglass Mesh has transformed modern construction site operations and wall plastering quality control. Color-coded meshes allow construction managers and site inspectors to rapidly confirm that the correct weight, grid size, and specialty formulation (such as fire-retardant or high-impact grade) have been deployed across specific wall sections. For instance, high-visibility orange mesh is widely specified across demanding construction projects in the Middle East to distinguish heavy-duty plaster reinforcement from light internal skim-coat netting. Integrally colored latex formulations protect the underlying glass yarns while ensuring vivid color saturation that does not bleed through or stain light-colored exterior wall finishes.

When integrated into interior or exterior wet plastering systems, Color Fiberglass Mesh functions as a continuous tensile stress relief membrane. Wet mortar and plaster mixes undergo significant volumetric shrinkage as moisture evaporates during chemical curing. Unreinforced rendering layers inevitably form micro-cracks over structural brickwork joints, concrete block interfaces, and window frame lintels due to localized stress concentration. The woven color grid anchors mechanically within the plaster paste, distributing curing stresses uniformly in all directions. This structural interlock prevents micro-cracks from consolidating into major structural fissures, preserving structural integrity under dynamic wind load pressure.

The adoption of specialized heavy-duty colored plastering mesh is particularly prominent in high-temperature, high-humidity regions such as Saudi Arabia, the UAE, and broader Gulf Cooperation Council (GCC) markets. Rapid environmental moisture loss in these climates subjects plaster coats to extreme drying shrinkage and severe thermal shock cycles. Utilizing robust colored meshes such as Orange Color Fiber Mesh for Plastering provides site supervisors with a clear visual verification tool during rapid base-coat application, ensuring consistent overlap lengths and total embedment depth across large commercial wall areas. For optimized plastering performance, contractors frequently specify standardized grid dimensions like Orange Color Fiber Mesh 20cmx50m 6x6mm 7x6mm 2000N to reinforce high-stress wall-to-column joints and window openings efficiently.

Comparative Performance Matrix: Technical Parameter Analysis

A comprehensive engineering evaluation of window screens, structural rendering meshes, and specialty fire-retardant grids requires analyzing critical material parameters, including tensile performance, alkali stability, fire endurance, and life-cycle cost efficiency.

Selecting the optimal mesh product requires balancing environmental conditions against mechanical performance demands. Architectural specifiers must carefully evaluate operational parameters to ensure material suitability. Standard vinyl fiberglass excels in basic fenestration due to its low weight, cost-efficiency, and complete immunity to moisture-induced atmospheric oxidation. However, for applications involving mechanical shear forces, structural window spans, or high-temperature environments, metallic aluminum mesh provides superior dimensional stiffness and physical puncture resistance.

For specialized building envelope construction, structural EIFS rendering, and high-tier wall plastering, engineered alkali-resistant and fire-retardant fiberglass meshes are essential. Standard screening fabrics lack the specialized latex chemistry and high tensile capacity required to withstand aggressive alkaline environments within wet cement mortars. Specialty materials such as Fire-retardant Fiberglass Mesh 4.5oz unite chemical stability, high tensile load capacity, and fire suppression characteristics, satisfying modern international building code standards. The comparison table below highlights key performance parameters across material categories to assist project specifiers in making informed selections.

Installation Guidelines and Preventive Maintenance Protocol

Proper field installation procedures and preventive maintenance protocols are essential to maximize the service life and structural integrity of architectural screens and reinforcing fiberglass meshes.

Achieving optimal long-term performance from window screen meshes and embedded rendering fabrics requires strict adherence to technical installation standards. For standard window screening (fiberglass or aluminum), technicians must ensure uniform, calibrated tensioning along the spline channel during spline insertion. Over-tensioning vinyl-coated fiberglass can cause frame bow deformation, while under-tensioning leads to unsightly wind flutter and premature fatigue failure along frame edges. When installing aluminum mesh, installers must use specialized smooth-wheeled roller tools to avoid stripping the protective acrylic or anodized topcoat, which exposes raw alloy to atmospheric oxidation.

For structural EIFS applications utilizing Fire-retardant Fiberglass Mesh 4.5oz or plastering reinforcement using Color Fiberglass Mesh, field installation must strictly follow wet-on-wet embedment protocols. Base-coat mortar should be troweled onto the insulation board or masonry substrate at a uniform wet thickness of approximately 2.0 to 3.0 mm. The reinforcing mesh must then be pressed into the fresh base coat using a stainless steel trowel, working smoothly from the center toward the edges until the grid is fully encapsulated within the outer third of the render layer. Adjacent mesh sheets must maintain a minimum lap splice width of 100 mm (4 inches) to ensure continuous tensile load transfer across the building facade. Never lay dry mesh directly against bare insulation boards and trowel mortar over top, as this creates unbonded voids that cause catastrophic delamination under cyclic thermal load.

Routine maintenance protocols vary by material classification. Standard exterior fenestration screens should undergo annual washing with soft natural-bristle brushes, neutral pH soap, and low-pressure water rinsing to eliminate accumulated organic dust, atmospheric salts, and corrosive airborne particulates. Abrasive chemical detergents, solvent cleaners, and high-pressure power washers must never be used, as they strip vinyl coatings and scratch metallic aluminum wire finishes. For embedded structural rendering meshes, periodic visual inspections of exterior wall facades should be conducted to detect movement joints, mechanical impact damage, or water intrusion points. Prompt elastomeric sealing of localized surface cracks prevents moisture ingress, safeguarding the underlying mesh matrix and maintaining long-term building envelope durability.
