As a senior materials engineer specializing in technical textiles and building envelope reinforcement, I frequently encounter client inquiries regarding the multi-functional application of high-performance glass fibers. A common, highly critical question from project managers and architectural specifies is whether fiberglass mesh engineered for construction can double as an effective fireproof window screen. In modern architectural design, the line between thermal envelope safety and fenestration protection is increasingly blurring. Building codes worldwide demand stringent flame retardancy, superior mechanical stability, and high chemical resistance. In this comprehensive technical analysis, we will evaluate the physical properties, fire-retardant latex coatings, thermal thresholds, and structural limitations of specialized fiberglass meshes to determine their viability, safety profile, and mechanical suitability as fireproof window screens.
Can Fiberglass Mesh Withstand Direct Flame Exposure for Window Applications?
How Does Fire Retardant Fiberglass Mesh Compare to Traditional Screen Materials?
What Are the Essential Technical Specifications for Architectural Fireproof Meshes?
What Engineering Challenges Arise When Installing Fiberglass Mesh as Window Screens?
Which International Fire Safety Standards Apply to Coated Fiberglass Screens?
How Do Environmental Conditions and Maintenance Impact Long-Term Screen Integrity?
Specialized fire retardant fiberglass mesh possesses high thermal endurance and can withstand intense heat without melting or supporting flame spread, making it technically capable of acting as a secondary flame barrier.
When assessing glass fiber performance under thermal stress, it is vital to distinguish between standard insect screening and structural reinforcement fabrics. Fire-retardant Fiberglass Mesh 4.5oz is a special kind of mesh that is mainly used for EIFS. It is customized for buildings where require ultra protection from fire. It's made of AR glass fiber woven mesh then coated with fire-retardant latex. The coating doesn't only protect the glass fiber inside from acid material, but also can stop the fire from spreading. Therefore, even after being burned, the EIFS system will not be on fire and remains intact. Fire-retardant Fiberglass Mesh 4.5oz is very popular in North America like USA, Canada and Mexico etc., because of excellent performance of fire resistance, super soft and high tensile strength. It plays the role of "soft steel" when embedded in EIFS system and can avoid the deformation of entire insulation structure caused by exterior pressure or squeeze, therefore it can enhance the durability and longevity of insulation structure.
The fundamental base material—alkali-resistant (AR) or E-glass filaments—possesses an intrinsic melting point exceeding 1200°C (2192°F). However, the operational limiting factor in window screen applications is the polymer binder coating. Standard window screening uses PVC coating which can char, smoke, and decompose at temperatures as low as 200°C. In contrast, specialized architectural fire retardant mesh utilizes an inorganic or heavily modified flame-retardant synthetic latex coating. This specialized chemistry prevents combustion, eliminates flaming droplets, and maintains structural integrity under rapid thermal degradation.
When integrated into window openings, this material creates a non-combustible thermal shield. While traditional screen meshes quickly melt and allow burning embers to enter the building interior during wildland-urban interface fires, specialized fire retardant fiberglass mesh maintains its matrix. The high tensile strength prevents thermal distortion, holding the barrier intact even when exposed to radiant heat surges. To understand the structural composition of these technical textiles, review the core material characteristics in the table below.
Material Attribute | Technical Value / Characteristic | Operational Significance |
Base Fiber Type | Alkali-Resistant (AR) / E-Glass Fibers | Prevents structural decay from alkaline substrates and high environmental exposure |
Nominal Fabric Weight | 4.5 oz/yd² (approx. 150 g/m²) | Provides optimal balance between tensile strength and flexible handling |
Coating Chemistry | Fire-Retardant Synthetic Latex | Inhibits flame propagation and prevents hazardous combustion dripping |
Thermal Decomposition Threshold | > 600°C (Coating), > 1200°C (Glass Core) | Maintains barrier integrity during intense radiant heat exposure |
Tensile Strength (Warp x Weft) | ≥ 1400 N / 50 mm | Resists wind loading, impact, and structural deformation during thermal events |
Working Principle: The underlying fire retardancy mechanism relies on an endothermic reaction within the specialized latex coating. When heat rises, the coating releases non-combustible vapor phases, starving the immediate boundary layer of oxygen while forming a protective carbonaceous char over the glass filaments.
Fire retardant fiberglass mesh offers superior corrosion resistance, higher mechanical flexibility, and thermal char-resistance compared to standard aluminum or stainless steel window screening.
To evaluate window screen performance accurately, engineers must balance thermal resilience, weight, corrosion behavior, and installation economics. Traditional metal screens, such as aluminum wire cloth, can oxidise rapidly in coastal environments and tend to melt at temperatures around 660°C. Stainless steel screens offer exceptional fire resistance, but they are heavy, difficult to field-cut, susceptible to permanent creasing during handling, and expensive.
Fire retardant fiberglass mesh fills the gap between light PVC insect screens and heavy metal wire cloth. Because the woven glass fibers are flexible, they do not suffer from permanent metallic denting or fatigue cracking when exposed to structural vibration or wind pressure. When considering exterior wall systems, architects often pair fenestration protection with underlying wall renders. For comprehensive façade projects, specifying high-performance plastering materials—such as high tensile strength orange color fiber mesh—ensures that the entire structural envelope meets rigid impact and crack resistance metrics.
From a manufacturing perspective, why do we engineer the mesh in this specific manner? Standard window screen wires lack structural elasticity. When subjected to thermal expansion, metal screens buckle, pushing away from frame splines. Glass fiber strands exhibit a near-zero coefficient of thermal expansion. Embedded within a fire-retardant latex matrix, the fibers remain taut under temperature fluctuations, maintaining a tight barrier against airborne embers.

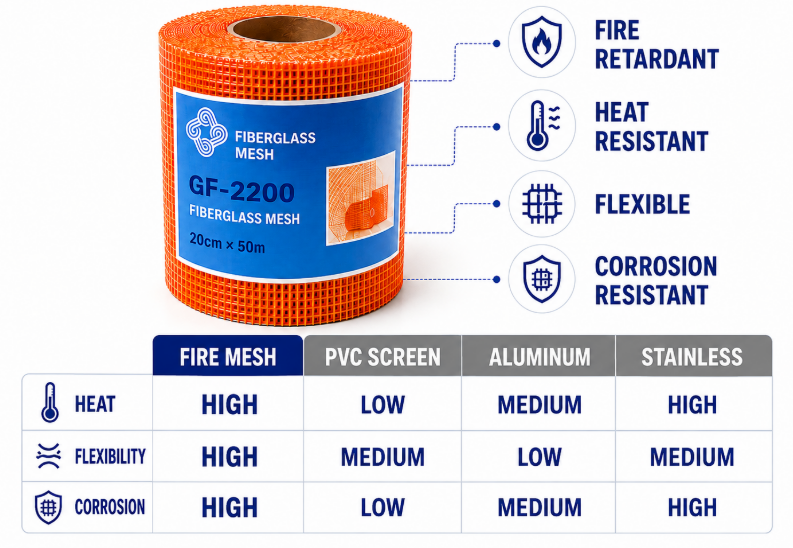

Performance Criteria | Fire Retardant Fiberglass Mesh | Standard PVC Fiberglass Screen | Aluminum Wire Screen | Stainless Steel Mesh |
Melting / Degradation Point | > 1200°C (Core Fiber) | 180°C - 230°C (Melts) | ~660°C (Melts) | > 1400°C |
Corrosion & Acid Resistance | Exceptional (AR Glass) | Moderate | Poor in Coastal Air | Excellent (316 Grade) |
Flame Propagation Index | Class A / Zero Spread | Supports Combustion | Non-Combustible | Non-Combustible |
Weight & Handling Flexibility | Ultra-Light / Highly Flexible | Flexible | Rigid / Prone to Dents | Very Rigid / Heavy |
Tensile Retention Post-Heat | High (Char Matrix Intact) | Zero (Completely Destroyed) | Moderate (Softens) | High |
Architectural fireproof window applications demand precise mesh count, weight density, latex binder content, and tensile strength parameters to balance airflow, ember filtering, and flame resistance.
Selecting the correct technical specification for a fire-retardant glass fiber mesh determines its success as a window screening mechanism. Standard insulation meshes used in wall construction often utilize a 4x4mm or 5x5mm open grid. While excellent for plaster keying and mechanical rendering, window screens require tighter aperture geometries to prevent smaller airborne embers from passing through.
When designing custom window screening, engineers adjust the fiber yield (tex) and weave density. A standard 4.5oz mesh features high warp and weft counts that deliver incredible tensile capacity. If you need to explore the foundational chemistry, physical advantages, and structural manufacturing behind these technical textiles, read our detailed technical guide on understanding fiberglass mesh features and benefits.
In industrial applications, European and North American clients prioritize low smoke emission and non-toxic off-gassing. Why do technical specifiers prefer specific binder configurations? In EIFS systems and window shields alike, the latex binder must maintain flexibility at sub-zero temperatures while resisting softening at elevated temperatures. The coating chemistry must also resist chemical attack from acidic rain and atmospheric pollutants, ensuring the embedded glass core remains protected for decades.
Technical Parameter | Standard EIFS 4.5oz Specification | Fine Aperture Window Screen Specification | Heavy-Duty Protective Mesh |
Grid Opening Size | 4.0 mm x 4.0 mm | 1.5 mm x 1.5 mm | 6.0 mm x 6.0 mm |
Areal Mass (Weight) | 145 g/m² (4.5 oz/yd²) | 160 g/m² (4.7 oz/yd²) | 160 g/m² - 300 g/m² |
Polymer Content | 18% - 22% Fire Retardant Latex | 20% - 25% Fire Retardant Latex | 16% - 20% Fire Retardant Latex |
Break Strength (Warp) | ≥ 1400 N / 50mm | ≥ 1200 N / 50mm | ≥ 2000 N / 50mm |
Break Strength (Weft) | ≥ 1600 N / 50mm | ≥ 1300 N / 50mm | ≥ 2200 N / 50mm |
Alkaline Resistance | Retains > 75% strength after 28 days | Retains > 75% strength after 28 days | Retains > 80% strength after 28 days |
Adapting high-tensile fiberglass mesh to standard window frames requires careful consideration of frame spline retention, visibility, air permeability, and mechanical tensioning.
Integrating a technical fabric designed for EIFS or wall reinforcement into a window frame spline system presents specific mechanical challenges. Standard window screens use thin, soft PVC-coated wire that easily compresses into frame channels using a rubber spline tool. Structural fire retardant mesh possesses significantly higher shear resistance and stiffness due to its high tensile weave and protective latex matrix.
To achieve a professional installation without distorting the aluminum window frame, installers must adjust spline sizing and frame clamping force. When protecting large structural openings or integrated wall-to-window transitions, engineering teams often employ specialized exterior plaster systems. In heavy-duty architectural zones, specifiers utilize Saudi Arabia popular 2000N heavy duty fiber mesh to secure peripheral plaster returns around the window jambs, creating a seamless, fire-resistant junction between wall cladding and window frames.
Why is this architectural detailing so critical? In actual field applications, window frames act as major thermal bridges. If a fire-retardant screen is installed with improper tension, high wind forces generated during severe wildland fire updrafts can pull the screen out of the channel, exposing the interior glass pane to direct flame impingement.

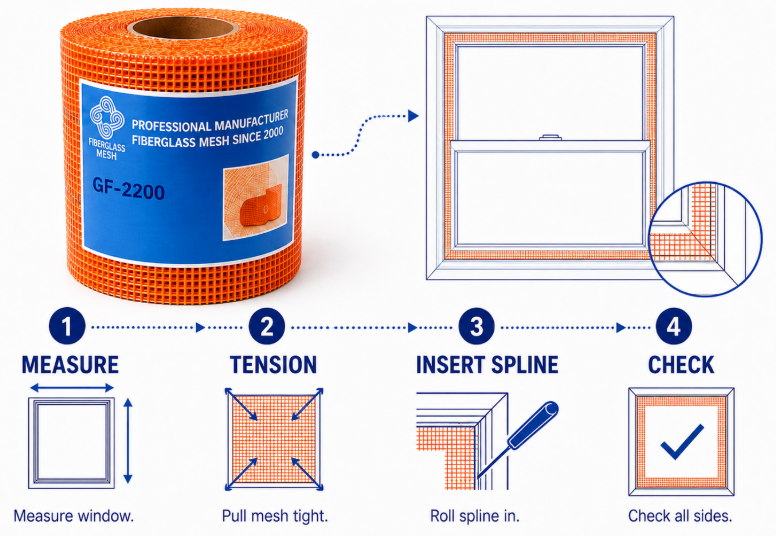

Frame Channel Sizing: Measure the internal channel width of the extrusion. Due to the thicker latex coating of fire-retardant mesh, select a spline diameter 0.5mm smaller than standard insect screen requirements.
Fabric Pre-Tensioning: Clamp the fire-retardant mesh evenly along the top horizontal rail using cushioned bar clamps. Apply uniform hand tension vertically to prevent diagonal weave distortion.
Spline Insertion Sequence: Roll the spline starting from the top left corner, moving across horizontally, then down the vertical tracks. Use a rolling tool with a concave metal wheel to handle the firm latex coating.
Corner Mitigation: Cut relief notches at 45-degree angles in the mesh selvage at each corner to prevent fabric bunching and spline lift.
Quality Verification: Apply a uniform perpendicular point load of 50 N to the center of the installed screen. The fabric must deflection-recover within 2 mm without slipping from the spline groove.
Fire-retardant fiberglass window screens must comply with stringent international standards including ASTM E84, NFPA 701, and UL 94 to verify low flame spread and self-extinguishing behavior.
In the B2B building material supply chain, certified performance is mandatory. Claiming a material is "fireproof" requires rigorous third-party laboratory verification. Fire testing evaluates three main phenomena: ease of ignition, flame spread rate, and total heat/smoke release.
Standard testing protocol ASTM E84 (Surface Burning Characteristics of Building Materials) measures how rapidly flame spreads along a horizontal tunnel lined with the test fabric. Specialized fire retardant fiberglass mesh achieves a Class A rating, characterized by a Flame Spread Index (FSI) of 0-25 and a Smoke Developed Index (SDI) under 450. Additionally, NFPA 701 testing verifies that when a vertical hanging sample is exposed to an open burner flame for 12 seconds, the after-flame time remains under 2 seconds and no flaming debris drops from the test specimen.
Why do commercial developers and regulatory authorities emphasize these specific certifications? In high-density urban developments and wildfire-prone interfaces, passive fire protection components must function without relying on active water spray systems. Incorporating certified materials ensures full compliance with local building safety codes. When specifying full-envelope fire mitigation systems, technical managers frequently cross-reference interior window screens with exterior rendering reinforcers like high impact plastering fiber mesh to ensure all materials meet unified non-combustibility criteria.
Fire Testing Standard | Geographic Relevance | Key Performance Metrics evaluated | Passing Criteria for Fireproof Screens |
ASTM E84 | North America (USA/Canada) | Flame Spread Index (FSI), Smoke Developed Index (SDI) | Class A Rating (FSI: 0-25, SDI: <450) |
NFPA 701 (Test Method 1) | International / USA | Vertical ignition, after-flame duration, char length | Char length < 165mm, no flaming drip |
EN 13501-1 | European Union | Reaction to fire, smoke production (s), flaming droplets (d) | Class B-s1, d0 or better |
CAN/ULC-S109 | Canada | Small-flame and large-flame exposure on vertical fabrics | Zero flaming melt drip, minimal flame duration |
GB/T 8624 | China | Building material combustion behavior | Grade B1 (Difficult-to-flammability material) |
Regular maintenance, non-acidic cleaning protocols, and UV inspection are essential to preserve the structural strength and fire-retardant latex coating of fiberglass screens over years of exposure.
Outer building envelope materials endure harsh environmental conditions: ultraviolet solar radiation, atmospheric ozone, acid rain, salt spray in coastal regions, and extreme freeze-thaw cycles. While the internal alkali-resistant E-glass core is chemically inert, the exterior fire-retardant coating can degrade if subjected to improper maintenance or aggressive cleaning chemicals.
Ultraviolet radiation can cause micro-cracking in non-stabilized organic polymers. High-grade fire retardant latex formulations contain hindered amine light stabilizers (HALS) and carbon black pigments to absorb UV photons and protect the polymer matrix. However, dust accumulation on window screens can trap moisture and acidic pollutants against the mesh fibers. Over time, these compounds may break down the coating binder, exposing the delicate inner glass fibers to mechanical friction and moisture degradation.
Maintenance Protocol: To preserve the fire performance and mechanical integrity of installed fire-retardant fiberglass screens, inspect screen spline tension twice annually. Clean the mesh using a soft-bristle brush and a neutral pH detergent (pH 6.5 - 7.5). Avoid high-pressure power washing exceeding 500 PSI, highly alkaline detergents, or solvent-based cleaners (such as acetone or toluene), as these chemical agents can dissolve the fire-retardant latex binder, compromising both the material's fire resistance and structural stability.
Can fiberglass mesh be used for fireproof window screens?
Yes, provided the mesh is specifically manufactured as a fire-retardant textile using alkali-resistant glass fibers and a specialized flame-inhibiting latex coating. Standard window screening made with PVC coating melts quickly and cannot serve as a thermal or ember barrier. However, high-performance structural meshes—such as Fire-retardant Fiberglass Mesh 4.5oz—deliver exceptional thermal endurance, Class A flame resistance, superior tensile strength, and zero flaming drip behavior.
By selecting correct aperture geometries, adjusting installation spline dimensions, and adhering to strict neutral-pH maintenance protocols, architectural specifiers and building managers can deploy fire-retardant fiberglass mesh as a highly reliable, corrosion-resistant, and cost-effective fire defense barrier across modern building envelopes.
