In the rapidly evolving landscape of modern construction, structural integrity and surface longevity are non-negotiable standards. As a technical specialist who has spent decades analyzing material behavior on high-stakes industrial sites, I have consistently observed that the transition from traditional, crack-prone render systems to advanced composite reinforcement is the defining factor in project success. We do not use reinforcement merely for convenience; we use it to counteract the inherent physical stresses that building materials face over time—thermal expansion, environmental degradation, and structural shifting. Understanding the role of high-performance materials like the durable Color Fiberglass Mesh is essential for any professional aiming to mitigate maintenance costs and ensure long-term structural resilience. This article explores the technical necessity of fiberglass mesh, the mechanics behind its performance, and why it remains the superior choice for architects and contractors worldwide.
Section | Summary |
What Is Fiberglass Mesh? | Definition of alkali-resistant glass fiber fabric as a structural reinforcing agent. |
Key Benefits | Analysis of durability, adhesion, thermal resistance, and material handling properties. |
Common Applications | Overview of usage in wall reinforcement, EIFS, waterproofing, and concrete systems. |
Why Choose Alternatives? | Comparative study focusing on long-term performance vs. traditional wire mesh. |
Installation Tips | Best practices for surface preparation, overlap ratios, and chemical bonding. |
Mistakes to Avoid | Identification of common failures like poor surface prep and low-quality materials. |
Fiberglass mesh is a specialized structural fabric engineered from glass fiber strands that are woven into a grid pattern and treated with an alkali-resistant coating to provide high tensile strength and dimensional stability to plaster, cement, and insulation layers.
From a structural engineering perspective, this material acts as the backbone of wall assemblies. Without it, thin-set mortar or external insulation layers are prone to micro-cracking and eventual delamination under mechanical pressure or thermal cycling. The industry has shifted toward these meshes because they do not corrode like metal alternatives, nor do they lose integrity when exposed to the high alkaline environments common in Portland cement products.
Our expertise confirms that the design of the mesh—specifically the weave density and the chemistry of the protective latex coating—determines its lifespan. For instance, the high-quality Color Fiberglass Mesh is frequently specified for projects requiring consistent, reliable coverage because the color-coding helps technicians verify that the correct weave weight has been applied in specific load-bearing zones.
When evaluating materials for global projects, particularly in regions with extreme temperature fluctuations, engineers prioritize meshes that balance flexibility with rigidity. We recognize that the core function is to distribute stress evenly across the entire surface plane rather than concentrating it at focal points. This prevents the "spiderweb" cracking often seen in poorly reinforced facade systems. For a deeper understanding of how these mechanical properties compare to traditional reinforcements, you can review our technical breakdown on the advanced benefits of modern reinforcement solutions.

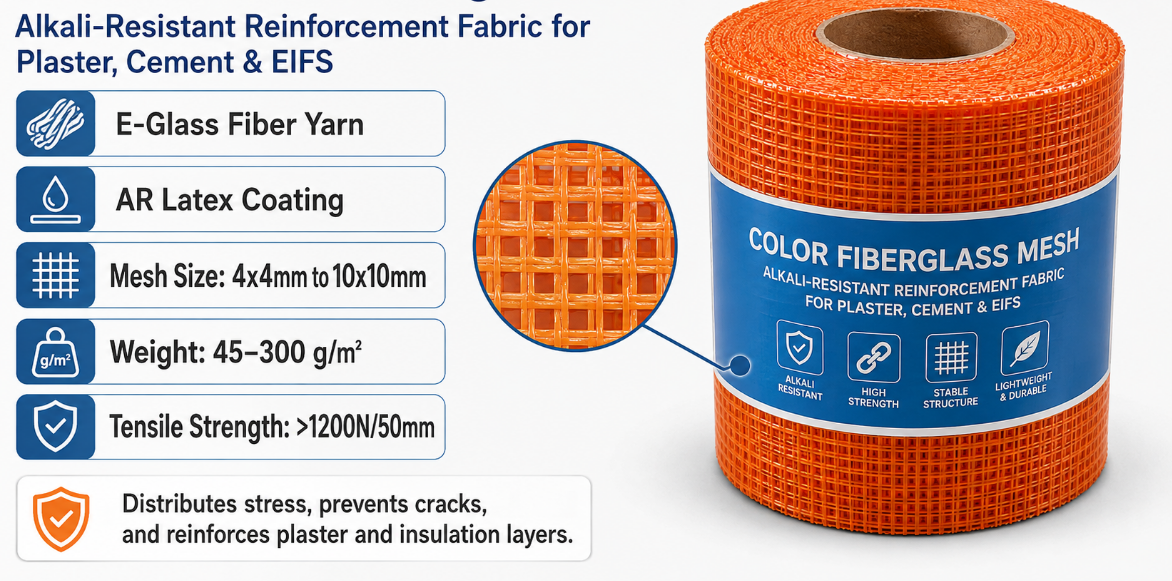

Component | Technical Specification |
Base Material | E-Glass Fiber Yarn |
Coating | Alkali-Resistant Latex/Fire-retardant |
Mesh Size | 4x4mm to 10x10mm (Customizable) |
Weight Range | 45g/m2 to 300g/m2 |
Tensile Strength | >1200N/50mm (Varies by weight) |

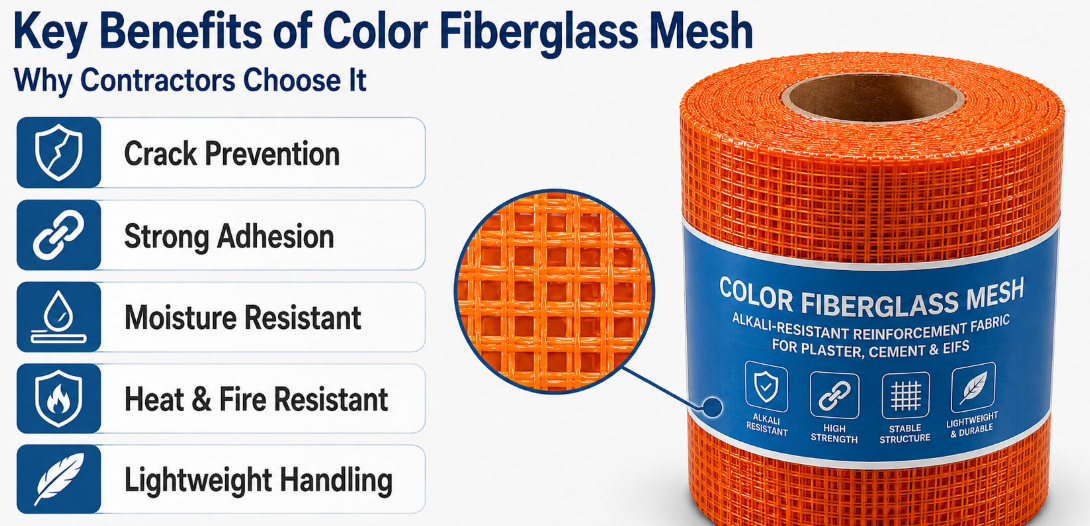

The primary benefits of utilizing fiberglass mesh include superior crack prevention, increased impact resistance, enhanced thermal efficiency, and long-term protection against chemical corrosion.
Fiberglass mesh functions as a stabilizer for base coats. When embedded properly, it bridges potential stress points, ensuring that the finished wall structure can handle building settlement or minor vibrations without splitting.
The surface texture of high-quality mesh is designed to allow mortar to penetrate through the openings, creating a mechanical lock. This creates a monolithic composite layer rather than two separate, bonded surfaces.
Unlike metal lath, which can rust and cause "bleeding" or staining on finished walls, fiberglass remains chemically inert in the presence of moisture. This is vital for waterproofing applications where humidity is constant.
Specialized meshes, such as Fire-retardant Fiberglass Mesh 4.5oz, are critical for EIFS systems. They prevent the insulation structure from deforming under high heat and stop flame spread, which is a major concern in high-rise construction.
Compared to heavy-duty steel wire, fiberglass is significantly easier to transport and cut on-site. This increases labor efficiency, allowing workers to maintain high output without sacrificing the quality of the finish.
Maintenance Tips: Always ensure that the mesh is stored in a dry, UV-protected environment until installation. Exposure to prolonged direct sunlight can degrade the latex coating before it is even applied.
Fiberglass mesh is extensively utilized in external insulation finishing systems (EIFS), internal wall plastering, concrete reinforcement, and waterproofing membranes due to its versatility and high tensile performance.
In new construction, large swathes of wall area are prone to cracking due to thermal expansion. Embedding mesh within the base coat acts as a tension membrane, essentially "holding" the plaster together as the building breathes throughout the seasons.
When installing large-format tiles, the underlying substrate is often subject to shifting. Using a reinforcement mesh prevents tile cracking by decoupling the movement of the substrate from the tile surface.
In wet rooms and rooftop terrace projects, mesh is used in conjunction with liquid waterproofing membranes to reinforce corners and joints, where leaks are most likely to occur. This is where our specialized Color Fiberglass Mesh is highly favored for its consistency and ease of integration into liquid-applied systems.
Fire-retardant versions are the industry standard for EIFS. By embedding a high-strength, flame-resistant mesh, the insulation board is shielded against exterior impacts and fire hazards, ensuring the longevity of the facade.
For non-structural decorative concrete or thin-set cementitious overlays, mesh provides the necessary tensile strength that plain concrete lacks, preventing surface scaling.
Fiberglass mesh is preferred over traditional materials like wire mesh because it offers a higher strength-to-weight ratio, complete immunity to oxidation, and significantly easier on-site handling characteristics.
The engineering community in Europe and North America has largely moved away from metal lath in non-structural facade applications. The reasoning is rooted in lifecycle costs. Metal, even when galvanized, eventually risks corrosion, which can undermine the bond between the coating and the wall, leading to costly facade replacements. Fiberglass mesh, being naturally corrosion-resistant, maintains its tensile integrity for the life of the building.
Furthermore, the "soft steel" properties of a high-quality mesh—its ability to be flexible enough to conform to contours while remaining rigid enough to provide reinforcement—make it the only viable choice for complex architectural features. When we look at client requirements, the top priority is consistently the reduction of long-term maintenance cycles. By using an engineered mesh, builders eliminate the risks associated with structural oxidation, ensuring the facade remains pristine for decades.
Successful installation relies on a strict sequence of surface preparation, ensuring the mesh is fully embedded in the base coat, and maintaining correct overlap distances at all seams.
Before applying any mesh, the substrate must be clean, dry, and free of bond-inhibiting substances. Any gaps or holes must be filled first to ensure a flat, uniform surface for the mesh to lay against.
This is the most common technical error found on job sites. Industry standard requires a minimum overlap of 100mm (4 inches) at every edge. Failure to overlap correctly creates weak points in the grid where cracks will inevitably appear.
The adhesive or base coat must be compatible with the mesh coating. We always recommend testing the chemical compatibility before proceeding to large-scale applications.
The base coat must be allowed to cure according to the manufacturer’s specifications. Applying finishing coats or paint before the mesh is fully encapsulated can lead to bubbling or delamination.
The most common failures involve skipping critical surface preparation steps, failing to account for proper overlap ratios, and compromising on material quality by choosing low-density, non-alkali-resistant options.
If you install mesh on a dusty or uneven surface, the adhesive will not penetrate the grid. The mesh will eventually "pop" off the wall, creating voids in the render.
We often see contractors "butt-joining" the mesh to save time. This is a critical error; the mesh must overlap to transfer stress loads continuously across the wall. Without the overlap, the seams will become the first points of failure.
Choosing cheap, non-alkali-resistant mesh is a false economy. In the high-pH environment of cement, low-quality mesh will dissolve or become brittle within a few years, leading to total facade failure. Always ensure the mesh meets the tensile strength requirements for the specific application climate.
The integration of fiberglass mesh into modern construction is not merely a design preference; it is a fundamental engineering requirement for ensuring durable, crack-free, and fire-safe building envelopes. By selecting high-performance, alkali-resistant materials and adhering to strict installation protocols, contractors can ensure that their projects stand the test of time. Whether working on complex EIFS systems or standard plastering, the reliability provided by a professionally applied mesh system is the difference between a project that requires constant repairs and one that remains structurally sound for decades. Understanding the physics of reinforcement is essential for any leader in the construction industry looking to maximize material efficiency and long-term value.
