Views: 0 Author: Site Editor Publish Time: 2026-01-23 Origin: Site
For a stone fabricator, few sounds are as sickening as the sharp crack of a marble slab failing on the saw table. In that split second, a high-value asset transforms into expensive rubble. This is not merely a material loss; it represents a cascade of financial and operational disruptions. Project timelines stall, client confidence wavers, and labor hours sink into a void that you cannot bill for. While insurance might cover the raw material, it never compensates for the disruption to your shop’s flow or the damage to your reputation.
For too long, the industry has defaulted to blaming "clumsy employees" or "bad luck" for these incidents. This perspective ignores the reality of modern fabrication. We process increasingly fragile, exotic geological veins using aggressive, high-torque machinery. The fault often lies not with the operator, but with the inherent structural weakness of the stone itself when subjected to vibration and tension. Prevention requires more than just "being careful." It demands a systematic approach to structural reinforcement.
This guide moves beyond basic handling tips. We will explore the physics of why marble fractures and, more importantly, how to engineer a defense against it. You will learn how integrating structural backings changes the tensile properties of the stone, turning a fragile slab into a predictable, profitable product.
Distinguish Defects: Learn to differentiate between natural fissures and fabrication-induced "stun marks" or stress cracks.
Operational Hygiene: Support, water flow, and blade sharpness are non-negotiable baselines, but they do not increase the stone's tensile strength.
Structural Insurance: Applying high-quality fiberglass mesh provides the necessary tensile reinforcement to survive transport and sawing forces.
ROI Reality: The cost per square foot of reinforcement material is negligible compared to the total cost of ownership (TCO) of a replaced slab.
To prevent breakage, we must first understand the mechanism of failure. Marble is a metamorphic rock composed largely of calcite. While it possesses reasonable compressive strength—it can support heavy loads—it suffers from notoriously low tensile strength. It cannot stretch, twist, or bend without failing. When a bridge saw or CNC machine engages with the material, it introduces forces that exploit this specific weakness.
Fabricators often debate whether a crack was "already there" or caused by the shop. Distinguishing between geological features and mechanical failures is critical for diagnosis.
Fissures: These are geological features occurring naturally in the stone. They are visible and palpable but often do not compromise structural integrity unless directly stressed. A fissure typically follows the grain and may appear on only one side of the slab.
Fabrication Cracks: These are failures in the crystal structure. They are sharp, often traverse across the natural grain, and are visible on both sides of the material. A tell-tale sign of a fabrication crack is the presence of "stun marks." These appear as white, bruised patches within the stone's surface, indicating where an impact or vibration shattered the microscopic crystal lattice immediately before the macroscopic crack formed.
Harder stones like granite or quartzite can dampen vibration effectively. Marble, being softer and more brittle, resonates with the frequency of the machine. Bridge saws and CNC routers generate high-frequency vibrations. If the slab is not perfectly adhered to the table, these vibrations travel through the stone. When this energy encounters a micro-fissure or a weak vein, it acts like a wedge, driving the fissure open until catastrophic failure occurs.
Temperature differentials remain an underestimated cause of breakage. The friction of a diamond blade cutting through stone generates immense heat. If the water cooling system is inadequate or intermittent, the stone at the cut line expands rapidly while the surrounding material remains cold. This thermal expansion creates immediate stress along the cut. Cutting a stone that has been stored outside in freezing temperatures directly with a friction-heated blade is a recipe for instant thermal shock fracture.
Before discussing material reinforcement, we must validate the operational "hygiene" of the shop. Even the strongest reinforcement systems cannot fully compensate for negligent machinery maintenance or aggressive cutting parameters. These practices form the baseline of fracture prevention.
The interface between the tool and the material is where most stress originates. For softer, brittle materials like marble and travertine, blade selection is paramount.
Continuous Rim Blades: Segmented blades are excellent for granite but strike the stone with an intermittent impact that can shatter fragile marble veins. Continuous rim blades provide a smoother cutting action, significantly reducing impact energy.
The Dull Blade Danger: A dull diamond blade does not cut; it grinds. This friction generates excessive heat and requires the operator or machine to apply more downward pressure. This added pressure increases the bending moment on the slab, often snapping it before the cut is complete. Regular dressing of the blade to expose fresh diamonds is a critical preventative measure.
Gravity is a constant enemy during the cutting process. If a slab is not supported evenly, it becomes a lever waiting to snap.
The Cantilever Risk: When a blade cuts through a slab, the structural continuity of the material is severed. If the piece being cut off is not supported underneath, it becomes a cantilever. As the cut nears completion, the weight of the hanging piece will cause it to sag, snapping the remaining sliver of stone. This often results in a jagged, unrepairable corner blow-out.
Using rubber mats or sacrificial backer boards helps absorb machine vibration while ensuring the stone has continuous support underneath, preventing gravity from influencing the break.
How the machine enters and exits the stone determines the survival of the corners. Two techniques are essential for fragile materials:
Multiple Shallow Passes (Step Cutting): Plunging a blade full-depth into a fragile marble slab exerts maximum torque and side-pressure on the stone. "Step cutting"—lowering the blade incrementally (e.g., 1/4 inch per pass)—reduces the load on the stone, keeping the material cooler and less stressed.
Lead-ins and Lead-outs: The start and end of a cut are the most vulnerable moments. Operators should reduce the feed rate by 50% when entering the cut and just before exiting. This prevents the blade from "blowing out" the edge as it leaves the material.
Operational care reduces risk, but it does not change the geology of the stone. To truly secure a fragile slab, you must alter its physical properties. This is achieved by adding an external tensile layer. Applying high-quality fiberglass mesh acts as an insurance policy, effectively creating a composite material that is far stronger than the stone alone.
As noted, marble lacks tensile strength. It cannot hold itself together under tension. By adhering a mesh backing to the rough side of the slab, you create a "tendon" system. When the stone is lifted, twisted, or vibrated, the tension forces are transferred from the brittle calcite crystal to the flexible, high-tensile glass fibers. The mesh distributes point-load stresses—such as the pressure from a clamp or a specific saw tooth—across a wider surface area, preventing localized failures.
The reinforcement process involves applying the mesh to the back (rough) side of the slab. This is typically done using a compatible epoxy or polyester resin. The resin saturates the mesh and bonds it chemically to the stone substrate. Once cured, this backing becomes a permanent structural component of the slab.
Not all mesh is created equal. Fabricators often make the mistake of using generic drywall tape or low-grade packaging mesh to save pennies, only to lose thousands in breakage. Standard, low-grammage mesh is often loose-woven and weak. Under the high torque of a CNC machine or the weight of a horizontal carry, this weak mesh simply tears, offering zero protection.
Furthermore, standard mesh often lacks alkali resistance. If the slab is installed using cement-based thin-set mortar, the alkalis in the cement can chemically attack and dissolve standard glass fibers over time. This leads to delamination and failure after installation.

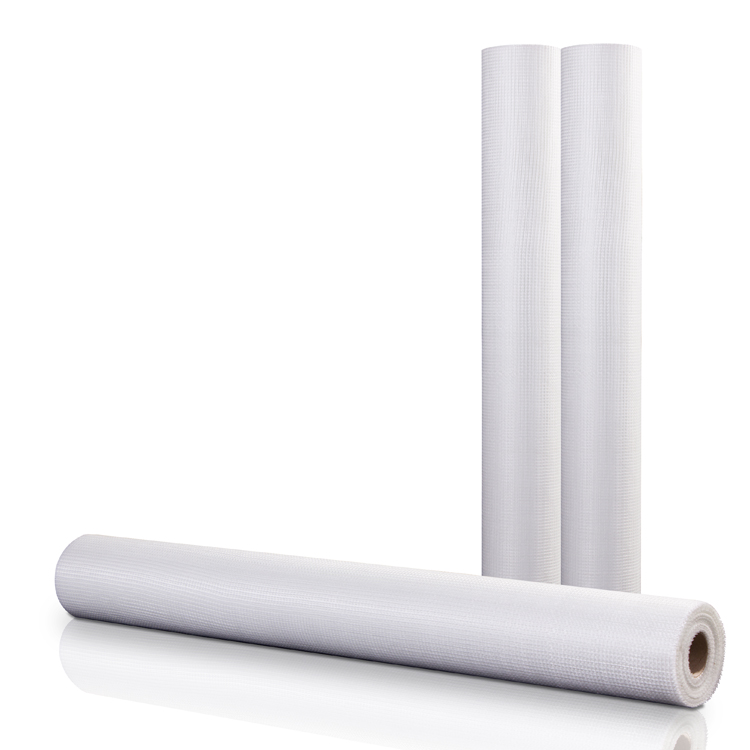

Professional fabrication requires specialized materials. Marble Backing Mesh is engineered specifically for the stone industry. It features a specific weave tightness designed to balance two competing needs: preventing excessive epoxy bleed-through (which wastes resin) while allowing enough contact for maximum adhesion. High-quality variants possess high tensile strength to withstand the rigors of automated sawing and possess the alkali-resistant coating necessary to ensure longevity after installation.
When reinforcing a countertop, fabricators typically choose between mesh backing and "rodding." Understanding the strengths and weaknesses of each allows you to choose the right protection for the specific project.
| Feature | Fiberglass Mesh Backing | Steel/Fiber Rodding |
|---|---|---|
| Coverage Area | Full Slab (Global Protection) | Linear Strip (Local Protection) |
| Protection Type | Multi-directional (Twisting/Torque) | Linear (Bending along one axis) |
| Primary Use Case | Transport, Handling, General Fabrication | Narrow cutouts (Sink rails) |
| Risk Factor | Low (if compatible adhesive used) | High (Oxide Jacking with steel) |
Rodding involves cutting a channel into the underside of the stone—usually around sink cutouts—and embedding a steel or carbon fiber rod encased in epoxy.
Limitation: Rodding provides excellent beam strength, but only in the specific strip where the rod is placed. It does nothing to protect the rest of the slab during transport.
Risk: The greatest danger with traditional steel rodding is "Oxide Jacking." If moisture penetrates the stone or the resin (which is porous), the steel rod will rust. As rust forms, it expands with tremendous force, cracking the stone from the inside out years after installation.
The primary advantage of high-quality fiberglass mesh is full coverage. It protects the center of the slab as effectively as the edges. Unlike rods, which only offer linear strength, the woven nature of the mesh offers multi-directional protection. This is crucial for preventing cracks caused by twisting forces when installers navigate corners or stairs.
For high-risk projects involving fragile marble with large sink cutouts, a hybrid approach is often the best practice. Fabricators should use full mesh backing to ensure overall slab integrity during transport and sawing, combined with non-rusting fiber rodding specifically at the sink rails to prevent flex during installation.
Some shop owners hesitate to adopt full meshing due to the perceived extra cost of labor and materials. However, a financial analysis of the Total Cost of Ownership (TCO) reveals that reinforcement is a cost-saving measure.
Consider the math. Reinforcing a slab might cost a small amount in resin, mesh, and perhaps 30 minutes of labor. Contrast this with the cost of a breakage. If a slab breaks on the saw, you lose the cost of the slab itself, the disposal fees for the waste, and the labor hours already spent. You then face the cost of purchasing a replacement slab, the logistics of shipping it, and the overtime labor required to re-cut it to meet the deadline. The cost of reinforcement is pennies compared to the dollars lost in a single breakage event.
The benefits extend beyond the shop floor. "Last mile" breakage—dropping or snapping a piece at the job site—is devastating. Reinforced slabs are significantly safer for installers to carry. The mesh holds the piece together even if a micro-fracture occurs, often allowing for an onsite repair that is invisible to the client, rather than a total loss. Furthermore, mesh reduces post-installation callbacks due to settling cracks, protecting your profit margin long after the invoice is paid.
Finally, proactive fabricators use reinforcement as a sales tool. You can position "fully reinforced backing" as a premium feature to homeowners who are nervous about the durability of natural marble. explaining that you engineer the stone for longevity builds trust and differentiates your shop from competitors who cut corners.
Preventing marble slabs from cracking is not about luck; it is about engineering. A successful fabrication strategy relies on a "three-legged stool": proper machinery maintenance to reduce vibration and heat, skilled handling to navigate the cutting process, and proactive material reinforcement.
We cannot change the geological formation of a marble slab. However, by applying high-quality fiberglass mesh, we change how that geology reacts to stress. This simple addition transforms a fragile, risky material into a workable, durable, and profitable product. In an industry where margins are tight and timelines are strict, structural reinforcement is not just an optional add-on—it is essential business insurance.
A: It depends on the adhesive used. When using mesh, you must ensure the mesh is applied with a resin compatible with your installation adhesive. High-quality alkali-resistant mesh ensures that the backing does not degrade when in contact with cement-based thin-sets. Always check that the back of the meshed slab provides enough texture or exposed stone surface for the thin-set to grab, or use an epoxy-based setting material for maximum bond strength.
A: Mesh is primarily a preventative measure, not a repair kit for structural failure. While you can use mesh to hold a broken piece together during a repair (gluing), it is far more effective when applied before the trauma occurs. Applying mesh to a pre-existing crack helps stabilize it, but the structural integrity of the stone has already been compromised. Preventative meshing is always superior to reactive repair.
A: The differences are structural and chemical. Drywall mesh is lightweight and designed for holding joint compound, not reinforcing heavy stone. Stone backing mesh typically has a higher weight (gsm) and a tighter weave for resin saturation. Crucially, stone mesh is often coated for alkali resistance to survive contact with cement, whereas standard drywall tape may degrade and rot over time in a wet, alkaline environment.
A: No. Rodding and meshing serve different purposes. Rodding provides intense stiffening for narrow strips of stone (like sink rails) to prevent bending. Mesh provides global reinforcement across the entire back of the slab, holding the material together against twisting, vibration, and impact. Using rods without mesh leaves the rest of the slab vulnerable; using mesh without rods might leave thin sink rails flexible. They work best in tandem.
